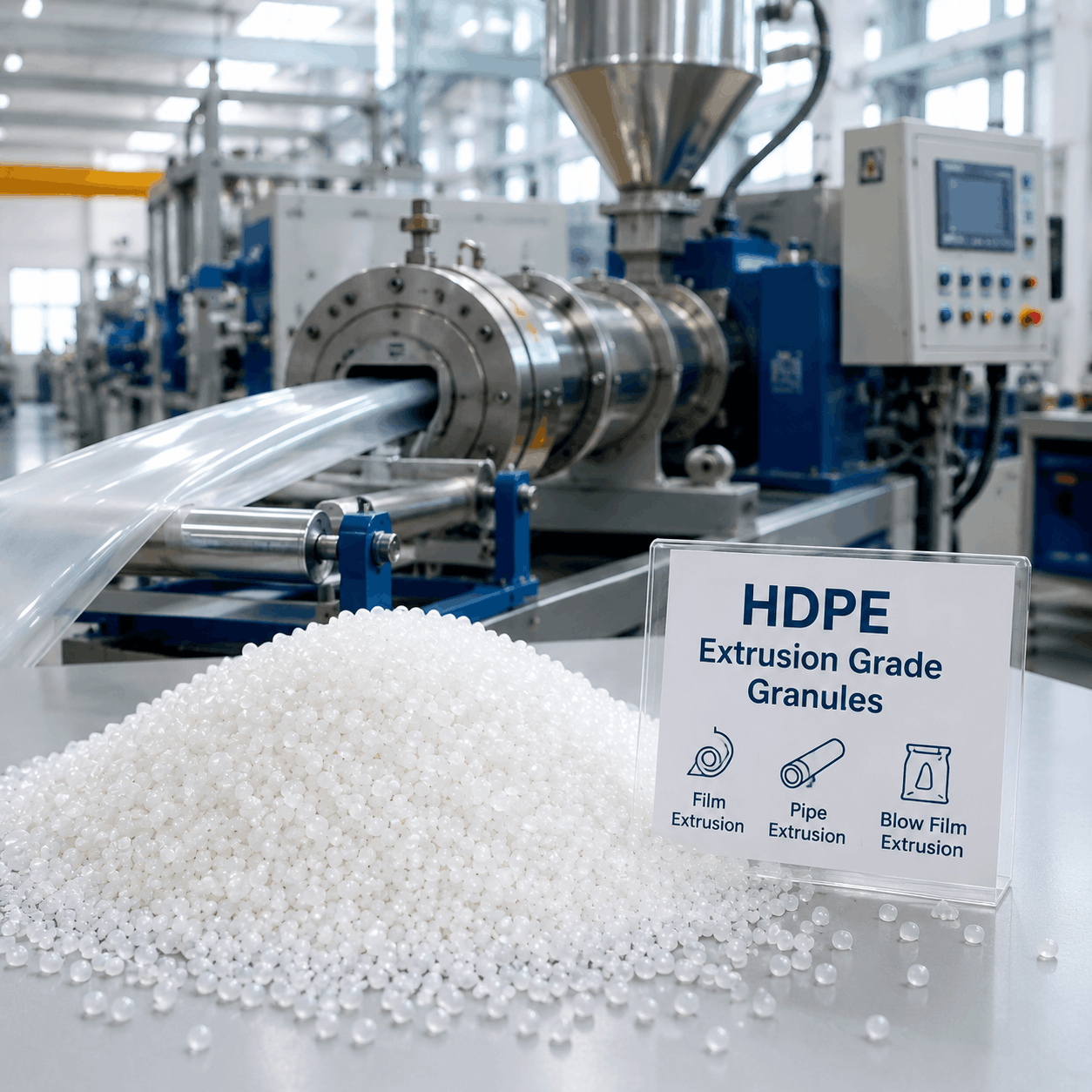

HDPE Extrusion Grade Granules

HDPE Extrusion Grade Granules are versatile polyethylene materials developed for continuous extrusion processes used to manufacture profiles, sheets, tubes, conduits and other semi-finished plastic products. These grades are selected for stable melt flow, consistent output and sufficient mechanical strength during continuous processing. The balance between melt viscosity, stiffness and cooling behavior allows manufacturers to maintain dimensional accuracy as the extrudate passes through dies, calibration systems and cooling units. Depending on the product design, different HDPE molecular structures and melt flow characteristics can be selected to improve surface quality, rigidity, impact resistance or extrusion productivity. The resin can also be compounded or modified when additional functional properties are required.

Applications include extruded sheets, plastic profiles, protective tubes, ducts, liners, industrial components and various custom extrusion products. HDPE provides good chemical resistance, moisture resistance and dimensional stability, making it suitable for components used in industrial, construction, agricultural and commercial environments. Manufacturers can produce products with different thicknesses and geometries by controlling die design, extrusion temperature, screw speed, cooling conditions and haul-off speed. Grade selection should therefore be based on the required melt flow behavior, product thickness, stiffness, impact resistance and operating environment rather than treating all HDPE extrusion materials as interchangeable.

HDPE Extrusion Grade Granules are normally supplied in sealed industrial polymer bags, commonly in 25 kg units, with jumbo bags available for larger production facilities where appropriate. Packaging protects the pellets against dust, moisture and foreign materials that could interfere with continuous extrusion. The material should be stored under controlled warehouse conditions and kept away from excessive heat and direct sunlight. For industrial purchasing, the manufacturer’s TDS and COA should be reviewed for MFR, density, mechanical properties and processing recommendations before the grade is introduced into a continuous extrusion line.

LDPE extrusion granule grade supply from Iran

Technical Specifications of HDPE Extrusion Grade Granules

Property	Typical Value
Polymer Type	High Density Polyethylene (HDPE) Extrusion Grade
Processing Method	Extrusion (Film, Pipe, Sheet, Profile, Blow Film)
Density (ISO 1183 / ASTM D1505)	0.945 – 0.960 g/cm³
Melt Flow Rate (ISO 1133, 190°C/2.16 kg)	0.2 – 2.0 g/10 min
Melt Flow Rate (HLMI, 190°C/21.6 kg)	5 – 10 g/10 min
Tensile Strength at Yield	22 – 30 MPa
Elongation at Break	500 – 800 %
Flexural Modulus	800 – 1400 MPa
Impact Resistance	High Impact Strength / Excellent Crack Resistance
Additives	Antioxidant, UV Stabilizer (Depending on Grade)

Note: Technical values may vary depending on the specific HDPE grade.

IF YOU ARE WILLING TO BUY HDPE GRANULE FROM IRANIAN SUPPLIERS, PLEASE SCROLL DOWN AND SUBMIT YOUR REQUEST.

Rated 0 out of 5

0 reviews

Rated 5 out of 5

0

Rated 4 out of 5

0

Rated 3 out of 5

0

Rated 2 out of 5

0

Rated 1 out of 5

0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “HDPE Extrusion Grade Granules”

You must be logged in to post a review.

FAQ HDPE Extrusion Grade Granules

HDPE Extrusion Grade Granules are specially developed polyethylene raw materials used in extrusion manufacturing processes. They are widely used for producing HDPE pipes, plastic sheets, films, profiles, geomembranes, blow film products, and various industrial plastic components. These granules provide excellent strength, durability, chemical resistance, and stable processing performance, making them suitable for both industrial and commercial applications.

HDPE Extrusion Grade Granules offer high impact resistance, excellent tensile strength, low moisture absorption, good chemical stability, and strong resistance to environmental stress cracking. Their balanced molecular structure allows manufacturers to achieve consistent product quality, smooth surface finish, and long service life in demanding applications such as piping systems and industrial films.

HDPE Extrusion Grade Granules are used for manufacturing a wide range of products, including HDPE water and gas pipes, drainage pipes, plastic films, sheets, liners, cable ducts, irrigation pipes, industrial profiles, and packaging materials. The final application depends on the specific HDPE grade, melt flow rate, and processing conditions.

The main difference is in their melt flow characteristics and molecular design. HDPE Extrusion Grade Granules are optimized for continuous extrusion processes and usually have lower melt flow rates to provide better strength and dimensional stability. Injection molding grades are designed for faster filling of molds and are commonly used for products such as crates, pallets, and containers.

HDPE Extrusion Grade Granules should be stored in a clean, dry environment away from direct sunlight, moisture, and contamination. Proper storage conditions help maintain the original quality of the resin and ensure stable processing performance during extrusion. Manufacturers usually keep the material in sealed bags or suitable bulk storage systems.

Finding a reliable Iranian supplier requires checking production capability, product quality, export experience, technical documents, and consistency of supply. IranCorps connects international buyers with verified Iranian manufacturers and exporters of HDPE granules and petrochemical products. Through IranCorps, buyers can easily find suitable suppliers, compare offers, receive technical information, and communicate directly with qualified Iranian producers for their required HDPE Extrusion Grade Granules.
