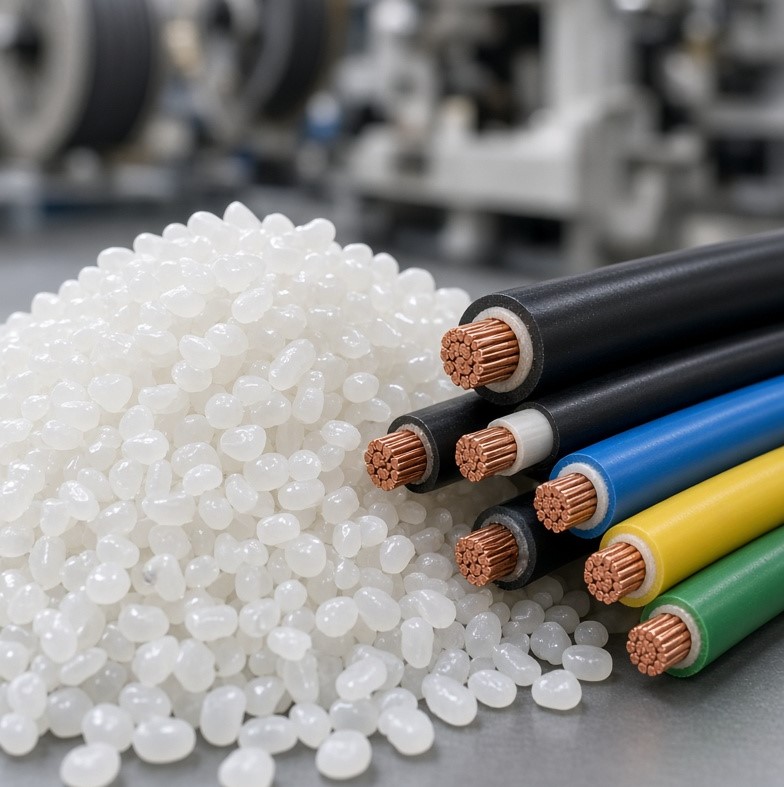

HDPE Wire & Cable Grade Granules

HDPE Wire & Cable Grade Granules are polyethylene compounds developed for extrusion applications where the polymer serves as an insulating or protective layer around electrical conductors and communication cables. The material must provide consistent extrusion, electrical insulation properties, mechanical durability and resistance to moisture and environmental exposure. Controlled molecular structure and melt flow behavior help produce a uniform coating around the conductor while maintaining stable line speeds and dimensional control. Depending on the cable construction, formulation and service environment, the polymer may be optimized for flexibility, abrasion resistance, dielectric performance and resistance to chemicals or moisture. Clean resin and consistent dispersion of additives are particularly important for producing defect-free cable insulation and jacketing.

HDPE is used in selected power, telecommunications, data communication and utility cable applications where its electrical and environmental properties are suitable. Its low moisture absorption and good dielectric characteristics can be advantageous in cables exposed to humid environments or underground installations. The polymer also provides useful abrasion and chemical resistance, helping protect the conductor from external mechanical and environmental stresses. Cable manufacturers select the grade according to conductor diameter, insulation thickness, extrusion equipment, operating temperature and required electrical performance. Processing stability is essential because surface imperfections, dimensional variation or contamination can compromise the quality of the finished cable.

HDPE Cable Grade is commonly supplied as uniform pellets in moisture-resistant bags, with 25 kg packaging widely used for industrial transportation and storage. Larger jumbo bags can be considered for high-throughput cable extrusion facilities depending on plant handling systems. The resin should be stored in clean, dry conditions and protected from contamination before entering the extrusion line. Technical evaluation should include melt flow characteristics, density, electrical properties, thermal stability and application-specific performance data to ensure that the selected grade is suitable for the intended cable construction.

HDPE Wire & Cable Grade Granules – Technical Specifications

Technical Property	Typical Specification / Description
Polymer Type	High-Density Polyethylene (HDPE)
Main Application	Wire insulation and cable jacketing
Melt Flow Rate (MFR)	Typically 0.2–1.5 g/10 min, depending on grade
Density	Typically 0.940–0.970 g/cm³
Dielectric Strength	Typically 20–30 kV/mm
Dielectric Constant	Typically 2.2–2.4
Volume Resistivity	Typically ≥10¹⁵ Ω·cm
Tensile Strength	Typically 20–30 MPa
Elongation at Break	Typically 300–600%
Processing Method	Continuous extrusion

Note: Technical values may vary depending on the specific HDPE grade.

IF YOU ARE WILLING TO BUY HDPE GRANULE FROM IRANIAN SUPPLIERS, PLEASE SCROLL DOWN AND SUBMIT YOUR REQUEST.

Rated 0 out of 5

0 reviews

Rated 5 out of 5

0

Rated 4 out of 5

0

Rated 3 out of 5

0

Rated 2 out of 5

0

Rated 1 out of 5

0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “HDPE Wire & Cable Grade Granules”

You must be logged in to post a review.

FAQ HDPE Wire & Cable Grade Granules

HDPE Wire & Cable Grade Granules are polyethylene materials designed for extrusion applications where HDPE is used as an insulation or protective jacketing material. They can be used in selected telecommunications, utility, data communication and industrial cable applications where good moisture resistance, electrical insulation and mechanical durability are required.

HDPE provides a combination of good dielectric properties, low moisture absorption, chemical resistance and mechanical strength. Its relatively low dielectric constant and low electrical losses can make it suitable for certain communication and cable applications. Its resistance to moisture is particularly useful for cables exposed to outdoor or underground environments.

HDPE Wire & Cable Grade is generally processed using continuous extrusion. The polymer is melted and conveyed through a specialized cable extrusion die, forming a uniform layer around the conductor or cable core. Precise control of melt temperature, extrusion speed, cooling and wall thickness is important for achieving consistent insulation and dimensional performance.

Important parameters include MFR, density, dielectric strength, dielectric constant, volume resistivity, tensile strength, elongation, thermal stability and environmental stress crack resistance. The required properties depend on the cable construction, conductor size, insulation thickness, operating temperature and intended service environment.

HDPE can be suitable for selected outdoor and underground cable applications because of its low water absorption, chemical resistance and good environmental durability. However, the exact grade must be selected according to the cable design, temperature range, mechanical requirements and applicable electrical specifications. For demanding installations, UV stabilization and other formulation requirements may also need to be considered.

International buyers can use IranCorps to find and source reliable Iranian suppliers of HDPE Wire & Cable Grade Granules. IranCorps can assist buyers in identifying suitable suppliers, comparing available grades, obtaining Technical Data Sheets (TDS) and Certificates of Analysis (COA), checking technical requirements and arranging commercial sourcing according to the required quantity, application and destination market.
