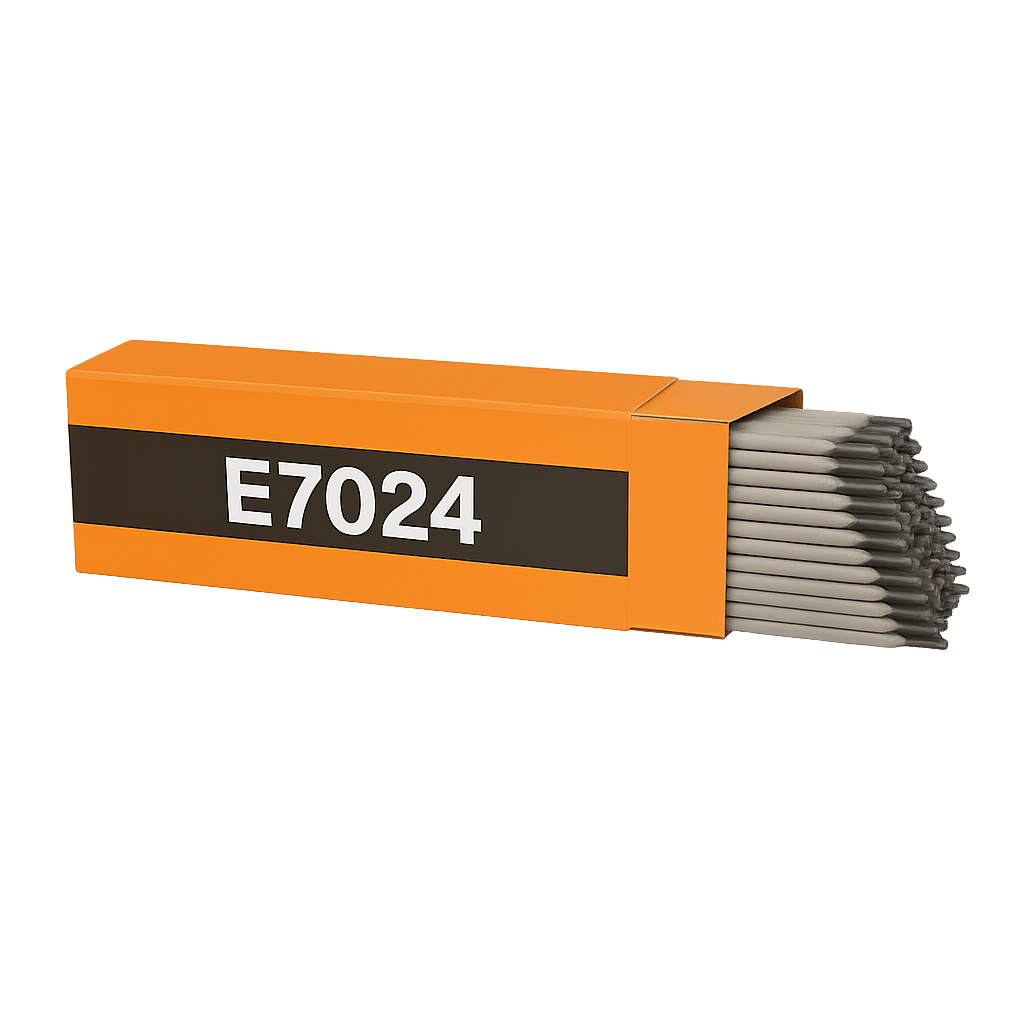

Welding Electrode Rod E7024

High-Deposition Electrode for Fast and Smooth Flat Welding, E7024 welding electrode is a high-efficiency, iron powder-coated electrode designed for rapid welding on flat and horizontal fillet joints. It provides exceptional deposition rates, smooth arc stability, and a uniform bead finish. Renowned for its productivity and ease of use, E7024 is the preferred choice for industries that demand strong, clean, and high-speed welds in large-scale fabrication projects.

The E7024 classification signifies a tensile strength of 70,000 psi, with welding capabilities optimized for flat and horizontal positions using AC or DC+ current. Its iron powder rutile coating enhances deposition efficiency and provides an exceptionally smooth, slag-covered bead that peels off easily after welding. Common applications include shipbuilding, heavy machinery, structural steelwork, pressure tanks, frames, and industrial fabrications requiring high weld metal recovery. E7024 electrodes are manufactured from low-carbon steel core wire alloyed with manganese and silicon, ensuring strong, ductile welds. The advanced flux formulation promotes high travel speeds, minimal spatter, and clean, uniform welds with excellent mechanical properties.

Advantages include high deposition rate, easy slag removal, smooth bead appearance, and superior productivity in flat welding operations. It is particularly suited for thick steel sections and large fillet joints. E7024 electrodes are available in 3.2 mm, 4.0 mm, and 5.0 mm diameters, packed in 5 kg and 20 kg moisture-resistant boxes, and palletized for export or industrial supply. With consistent quality, durability, and speed, E7024 electrodes ensure maximum efficiency for high-output welding environments.

Specification	Details
Product Name	Welding Electrode Rod E7024
AWS Classification	E7024
Electrode Type	Iron Powder Rutile Coated Electrode
Welding Process	Shielded Metal Arc Welding (SMAW / MMA)
Core Wire Material	Low Carbon Steel
Coating Type	Heavy Rutile Iron Powder Coating
Tensile Strength	Minimum 70,000 psi (490 MPa)
Yield Strength	Approximately 58,000 psi (400 MPa)
Welding Positions	Flat and Horizontal Fillet Welding
Available Diameters	2.5 mm, 3.2 mm, 4.0 mm, 5.0 mm
Applications	Structural steel, shipbuilding, machinery fabrication, general welding
Packaging Options	Vacuum packed cartons, plastic boxes, metal cans, export packaging

IF YOU ARE WILLING TO BUY WELDING ELECTRODE FROM IRANIAN SUPPLIERS, PLEASE SCROLL DOWN AND SUBMIT YOUR REQUEST.

Rated 0 out of 5

0 reviews

Rated 5 out of 5

0

Rated 4 out of 5

0

Rated 3 out of 5

0

Rated 2 out of 5

0

Rated 1 out of 5

0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “Welding Electrode Rod E7024”

You must be logged in to post a review.

FAQ Welding Electrode Rod E7024

E7024 welding electrodes are mainly used for high deposition rate welding applications including structural steel fabrication, machinery manufacturing, shipbuilding, bridges, and general repair welding.

E7024 electrodes provide high welding speed, excellent deposition efficiency, smooth weld appearance, easy slag removal, and stable arc performance.

E7024 welding rods are commonly available in diameters of 2.5 mm, 3.2 mm, 4.0 mm, and 5.0 mm with different lengths according to customer requirements.

E7024 electrodes are designed for Shielded Metal Arc Welding (SMAW), also known as manual metal arc welding, and are suitable for flat and horizontal welding positions.

You can find a suitable supplier in Iran for Welding Electrode Rod E7024 through Irancorps, which connects international buyers with verified Iranian manufacturers and exporters.

E7024 welding electrodes are widely used in construction, steel structures, industrial equipment manufacturing, automotive fabrication, shipbuilding, and metal processing industries.
