Welding Electrode Rod E6010

High Penetration Electrode for Pipe and Structural Welding, E6010 welding electrode is a premium-grade mild steel rod specially designed for deep penetration and high-strength welds in challenging environments. Known for its fast-freeze cellulose coating and strong arc force, it provides excellent performance in vertical, overhead, and root pass welding positions. E6010 is widely recognized in pipeline construction and heavy-duty fabrication for its reliability, penetration, and consistent weld quality.

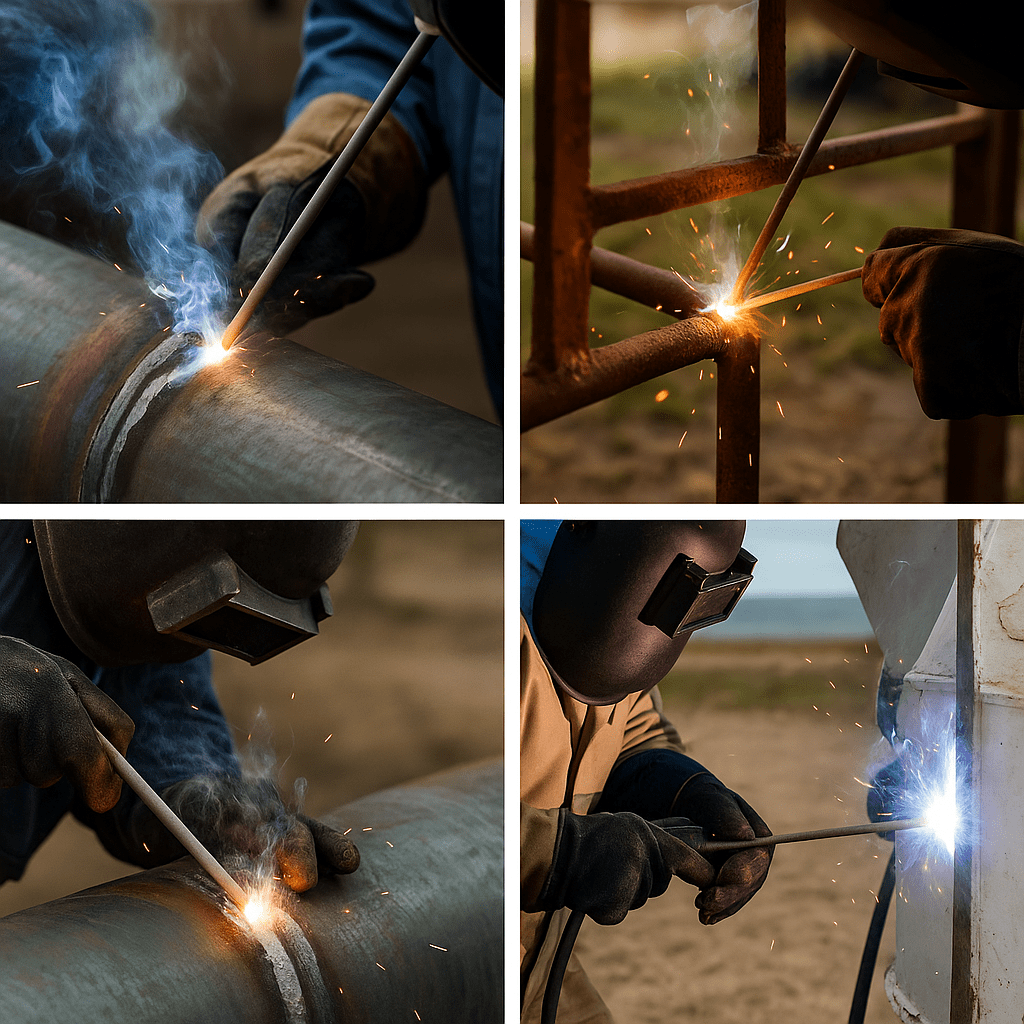

The E6010 classification indicates a minimum tensile strength of 60,000 psi, suitability for all-position welding, and compatibility with DC+ (reverse polarity) current. This electrode’s cellulosic sodium coating produces an intense, digging arc that easily penetrates through rust, paint, and mill scale, making it ideal for pipe welding, shipbuilding, pressure vessels, tanks, and structural steel fabrication. During production, E6010 electrodes are manufactured using low-carbon steel core wire alloyed with manganese and silicon for improved toughness and weld metal quality. The coating is precisely formulated to control arc stability, slag formation, and rapid solidification—ensuring high-quality welds even in tight or vertical joints.

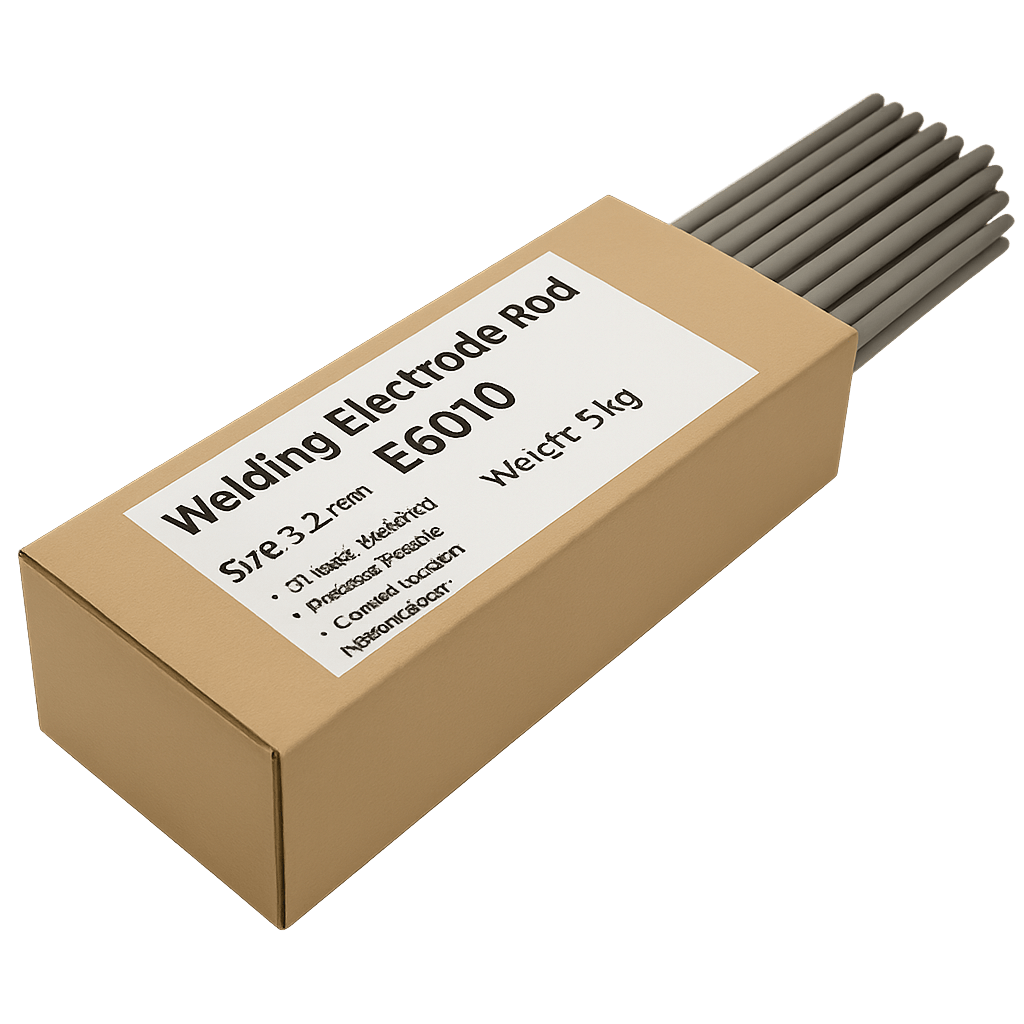

Advantages of E6010 include excellent root penetration, fast solidifying slag, strong arc stability, and high mechanical strength under variable field conditions. It performs exceptionally well for open root passes and pipeline joints. The electrodes are supplied in standard diameters of 2.5 mm, 3.2 mm, 4.0 mm, and 5.0 mm, and are available in 5 kg and 20 kg moisture-resistant boxes, palletized for industrial and export markets. E6010 electrodes deliver the reliability and performance professionals expect for critical welding operations in the most demanding environments.

Specification	Value
Product Name	Welding Electrode Rod E6010
Electrode Classification	AWS A5.1 E6010
Electrode Type	Cellulosic Coated Stick Electrode
Core Wire Material	Low Carbon Steel
Coating Type	High Cellulose Sodium Coating
Welding Current	DC+ (DCEP) Recommended
Tensile Strength	Minimum 60,000 psi (430 MPa)
Yield Strength	Approx. 48,000 psi (330 MPa)
Welding Positions	All Positions (Flat, Horizontal, Vertical, Overhead)
Available Diameters	2.5 mm, 3.2 mm, 4.0 mm, 5.0 mm
Applications	Pipeline Welding, Structural Steel, Repair Welding
Standards Compliance	AWS A5.1, ASME SFA 5.1

IF YOU ARE WILLING TO BUY WELDING ELECTRODE FROM IRANIAN SUPPLIERS, PLEASE SCROLL DOWN AND SUBMIT YOUR REQUEST.

Rated 0 out of 5

0 reviews

Rated 5 out of 5

0

Rated 4 out of 5

0

Rated 3 out of 5

0

Rated 2 out of 5

0

Rated 1 out of 5

0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “Welding Electrode Rod E6010”

You must be logged in to post a review.

FAQ Welding Electrode Rod E6010

E6010 welding electrode rods are mainly used for deep penetration welding applications such as pipeline construction, structural steel fabrication, shipbuilding, maintenance, and repair welding where strong and reliable weld joints are required.

E6010 electrodes provide deep arc penetration, fast freezing weld pools, excellent performance in vertical and overhead positions, and the ability to produce high-quality welds on dirty or rusty steel surfaces.

E6010 welding electrodes are widely used in oil and gas pipelines, construction, heavy machinery manufacturing, shipyards, steel structures, and industrial maintenance projects.

Common commercial sizes of E6010 welding rods include 2.5 mm, 3.2 mm, 4.0 mm, and 5.0 mm diameters, which are selected according to material thickness and welding requirements.

You can find a suitable supplier in Iran for E6010 welding electrode rods through Irancorps, which connects international buyers with reliable Iranian manufacturers and exporters.

E6010 welding electrodes should be stored in dry conditions with proper packaging protection to maintain coating quality and ensure stable welding performance.
