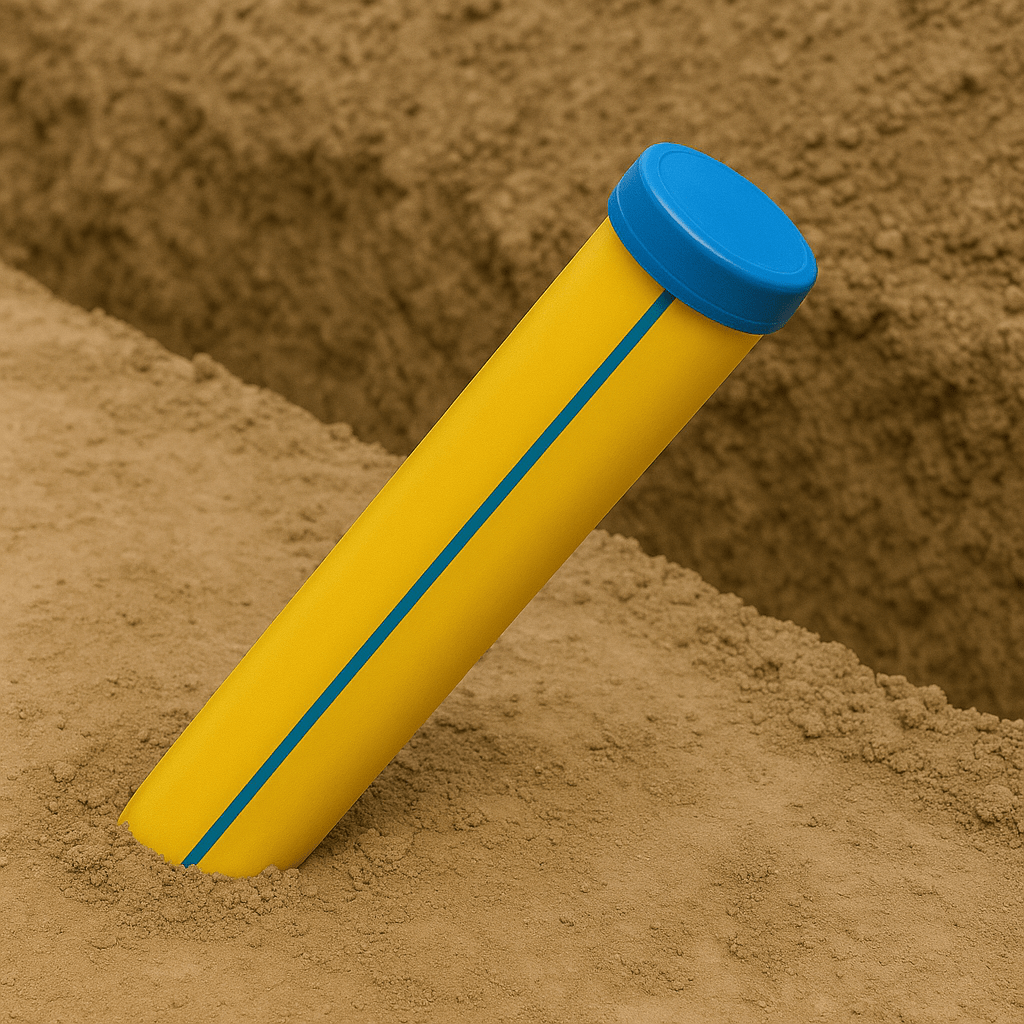

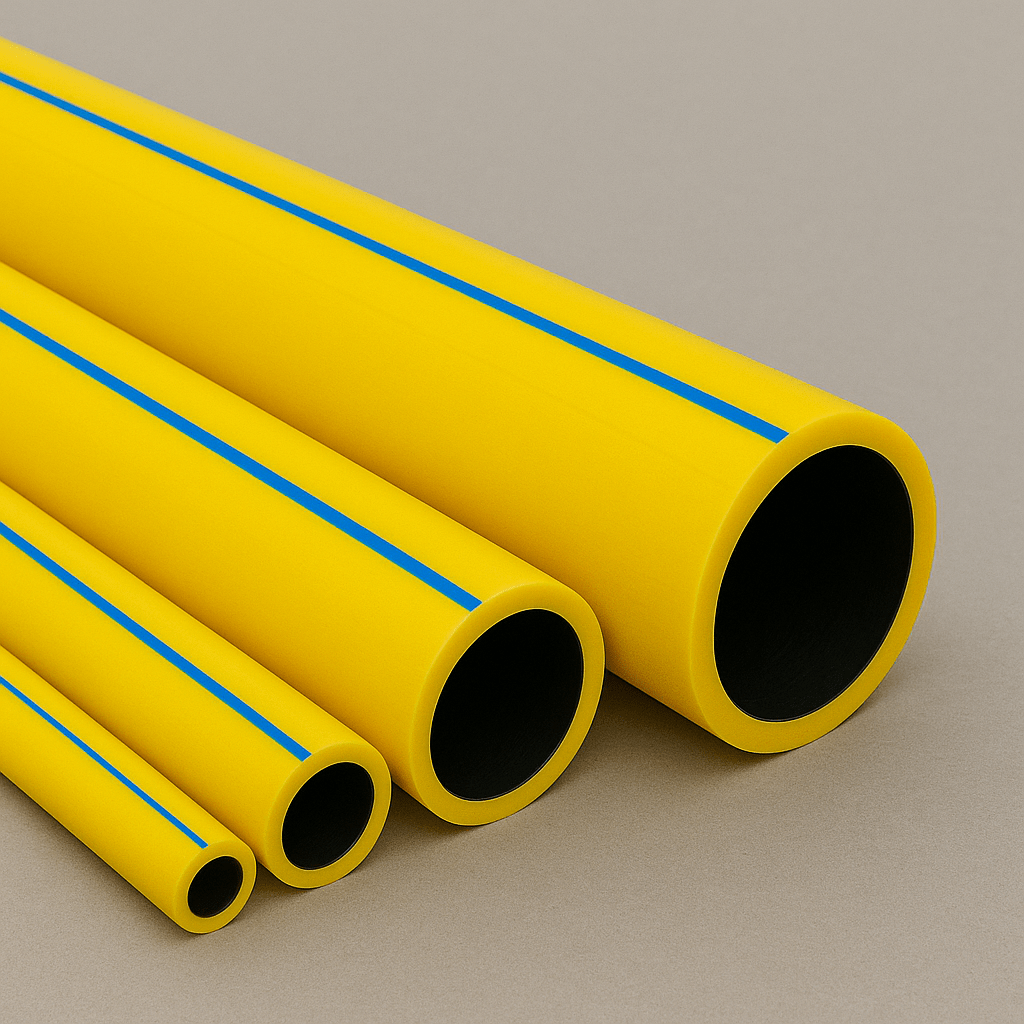

PE Gas Pipe

Natural Gas Pipes are manufactured through the processing of High Density Polyethylene Raw Materials in special extrusion production lines. Normally HDPE Natural Gas Pipes is based on DIN EN 1555 Polyethylene Plastic Pipe Systems

Available HDPE Natural Gas Pipes are produced within Ø20 – 1200 mm range in shape of tube coil and length pipes . It is an ideal solution for temporary installations or for the making of pipelines that need continuous displacement. HDPE gas pipe is suitable for outdoor gas transportation and distribution. The working temperature is between -20 °C and 40 °C, HDPE is an inert material that is resistant to various chemical media.

The Pressure Rating: PE:80: SDR11- PN 4 bar, SDR17-PN 2 bar; PE100: SDR11- PN 10 bar, SDR17-PN 6 bar.
Raw Materials: PE80, PE100.

These HDPE pipe is connected by electro fusion and its interface strength is higher than that of the pipe itself. The elongation at break of HDPE pipes is generally above 500%. For the uneven settlement of the foundation engineering construction, its adaptability is very strong and the seismic performance is good. These pipes have Excellent resistance to rapid crack propagation (RCP) and very good flexibility

Specification	Details
Product Name	PE Gas Pipe
Material	Polyethylene (PE)
Common Material Grades	PE80, PE100
Standard	ISO 4437 / EN 1555 / ASTM D2513
Application	Natural Gas Distribution
Nominal Diameter	Available in various sizes
Pressure Rating	SDR11, SDR17, SDR17.6 and others
Color	Yellow or Black with Yellow Identification
Connection Method	Butt Fusion / Electrofusion
Operating Temperature	Typically -20°C to +60°C
Surface	Smooth Internal and External Surface
Supply Form	Straight Lengths or Coils

IF YOU ARE WILLING TO BUY KINDS OF PE PIPES FROM VERIFIED IRANIAN SUPPLIERS, PLEASE SCROLL DOWN AND SUBMIT YOUR REQUEST.

Rated 0 out of 5

0 reviews

Rated 5 out of 5

0

Rated 4 out of 5

0

Rated 3 out of 5

0

Rated 2 out of 5

0

Rated 1 out of 5

0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “PE Gas Pipe”

You must be logged in to post a review.

FAQ PE Gas Pipe

PE Gas Pipe is designed primarily for the safe transportation and distribution of natural gas and other compatible gaseous fuels in underground gas distribution networks.

The most commonly used grades are PE80 and PE100. PE100 generally provides higher strength and pressure resistance, while the appropriate grade depends on the required operating pressure and applicable standards.

PE Gas Pipes are manufactured in a wide range of nominal diameters and wall thicknesses. The available dimensions depend on the manufacturer, pressure class, SDR designation and project requirements.

PE Gas Pipe offers excellent corrosion resistance, low weight, flexibility, smooth internal surfaces and reliable fusion-welded joints. These properties make it suitable for long-term underground gas distribution systems.

PE Gas Pipe can commonly be joined using butt fusion or electrofusion techniques. These methods create strong, leak-resistant joints when performed according to the applicable installation standards.

You can find a suitable Iranian manufacturer or supplier of PE Gas Pipe through Irancorps, which can help connect international buyers with suitable Iranian producers and exporters.
