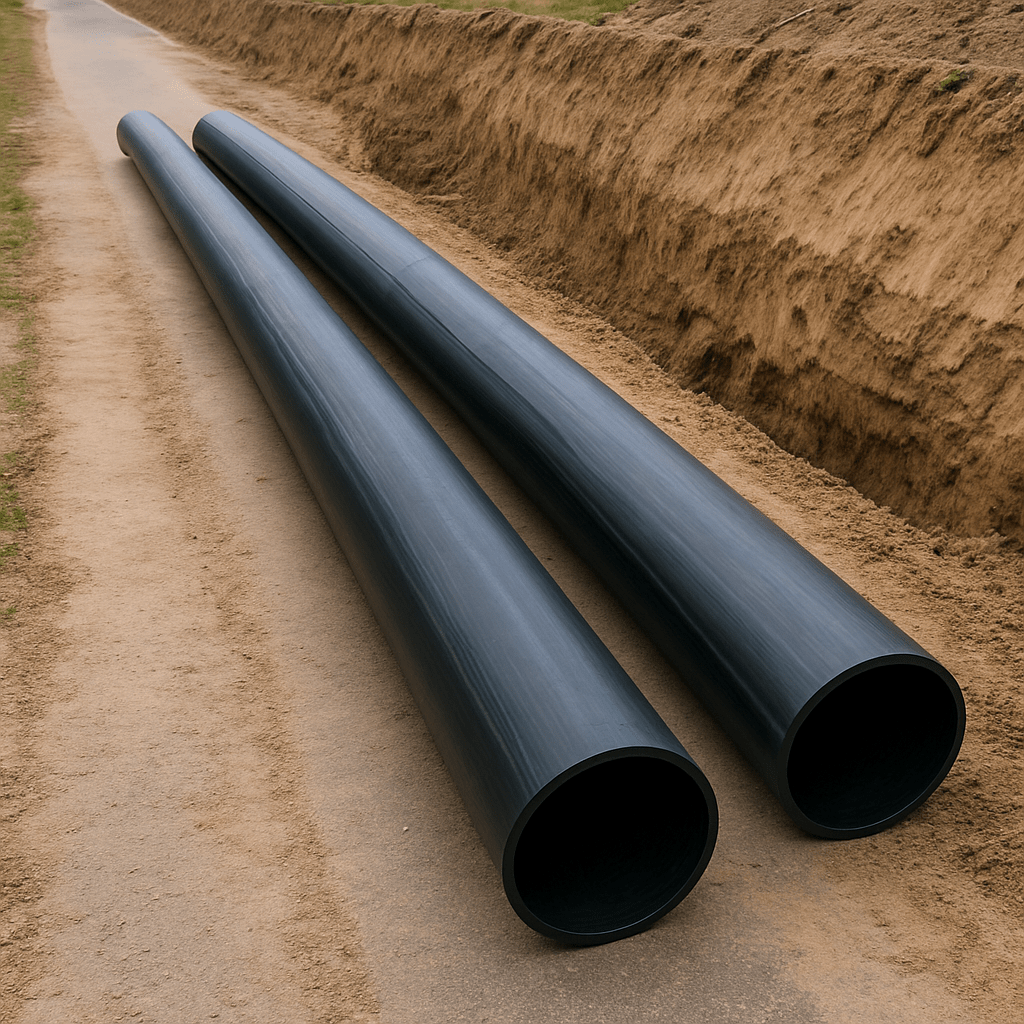

HDPE Irrigation Pipe

HDPE Irrigation Pipe is made of high quality virgin PE80 or PE100 PE resin as the main raw material, moulded through the process of extrusion, sizing, cooling and cutting. HDPE pipe for irrigation and water is manufactured for excellent performance and a long life expectancy.

HDPE pipes butt-fused joints eliminate potential leak points, common at 10 to 20 feet with ductile iron pipe, for a zero leak rate. Highly resistant to corrosion and weather, recent studies conclude it will last at least 100 years. Its light weight and flexibility make it easy to install, eliminate the need for fittings required with directional changes, and make it highly suitable for use in earthquake prone areas. The high-strength of HDPE pipe walls give it the highest PE pressure rating, outstanding resistance to SCG and increased resistance to rapid crack propagation. The increased working stress rating of high-performance PE 4710 resin material makes it a superior choice over steel or ductile iron pipe, especially for the large diameter pipe sizes.

HDPE pipes in black or blue color for farmland irrigation with related HDPE fittings can be provided. Available sizes from 16 to 630 mm in diameter.

Raw Materials: PE80, PE100.

Specification	Typical Details
Product Name	HDPE Irrigation Pipe
Material	High-Density Polyethylene (HDPE)
Standard	ISO 4427 / EN 12201
Pressure Rating	PN4–PN25
Diameter Range	16–630 mm
SDR Range	SDR 7.4–SDR 41
Pipe Length	6, 12 m or coils
Color	Black, with optional stripes
Connection	Butt Fusion, Electrofusion, Compression
Temperature Resistance	Approximately -40°C to +60°C
Applications	Irrigation, agricultural water distribution, drip and sprinkler systems
Main Advantages	Flexible, corrosion-resistant, lightweight and long service life

IF YOU ARE WILLING TO BUY KINDS OF HDPE , LDPE PIPES FROM VERIFIED IRANIAN SUPPLIERS, PLEASE SCROLL DOWN AND SUBMIT YOUR REQUEST.

Rated 0 out of 5

0 reviews

Rated 5 out of 5

0

Rated 4 out of 5

0

Rated 3 out of 5

0

Rated 2 out of 5

0

Rated 1 out of 5

0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “HDPE Irrigation Pipe”

You must be logged in to post a review.

FAQ HDPE Irrigation Pipe

HDPE Irrigation Pipe is a flexible polyethylene pipe designed for transporting and distributing water in agricultural irrigation systems, including drip, sprinkler and field irrigation networks.

HDPE Irrigation Pipes are available in a wide range of diameters, from small agricultural and drip-irrigation sizes to large-diameter pipes for main water distribution lines.

The pipe offers excellent resistance to corrosion, chemicals, moisture and abrasion, while its flexibility, low weight, smooth internal surface and reliable fusion joints make it suitable for long-term irrigation systems.

HDPE Irrigation Pipe can be connected using butt fusion, electrofusion or mechanical compression fittings, depending on the pipe diameter, pressure class and installation requirements.

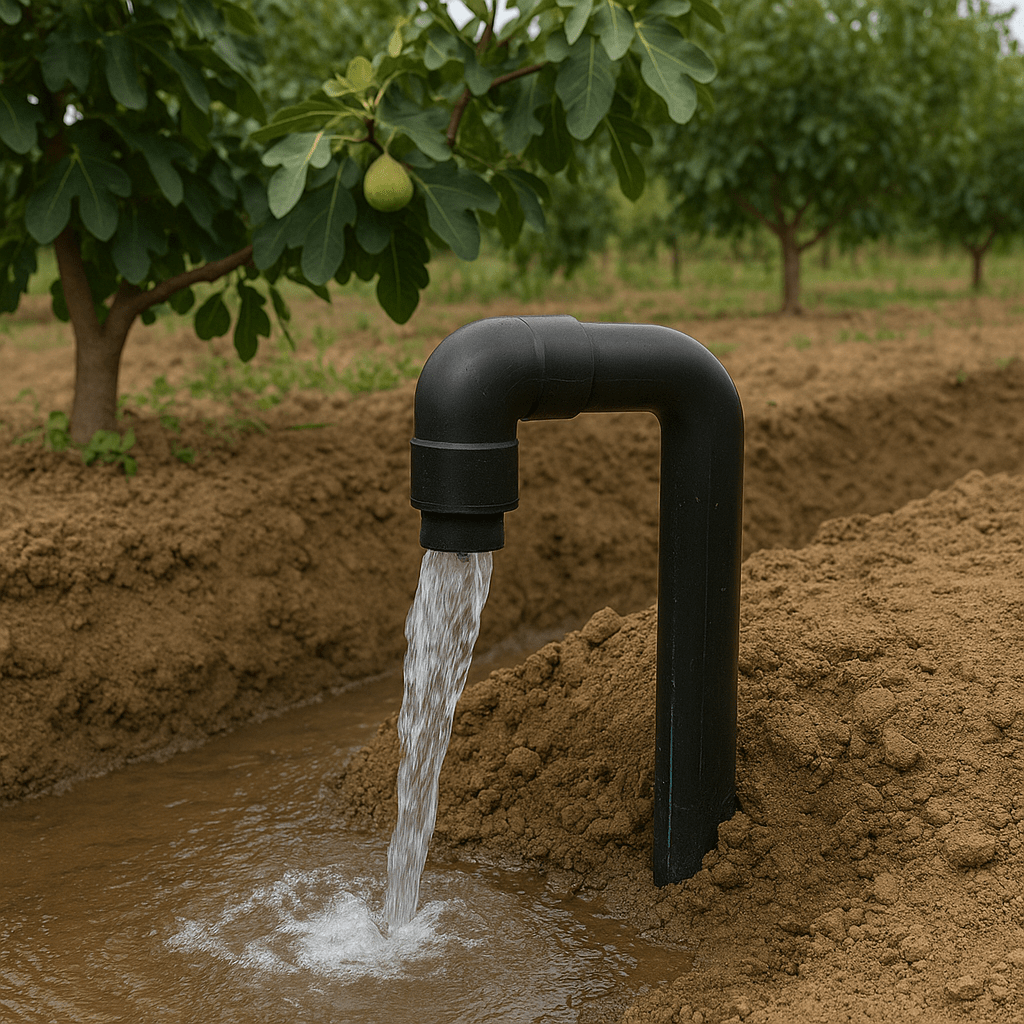

HDPE Irrigation Pipe is used for agricultural irrigation, drip irrigation, sprinkler systems, water conveyance, greenhouse irrigation, agricultural water distribution and irrigation mainlines.

You can find a suitable supplier in Iran through Irancorps, which helps international buyers connect with Iranian manufacturers and suppliers of HDPE Irrigation Pipe according to their required specifications.
