Aluminum Composite Panels

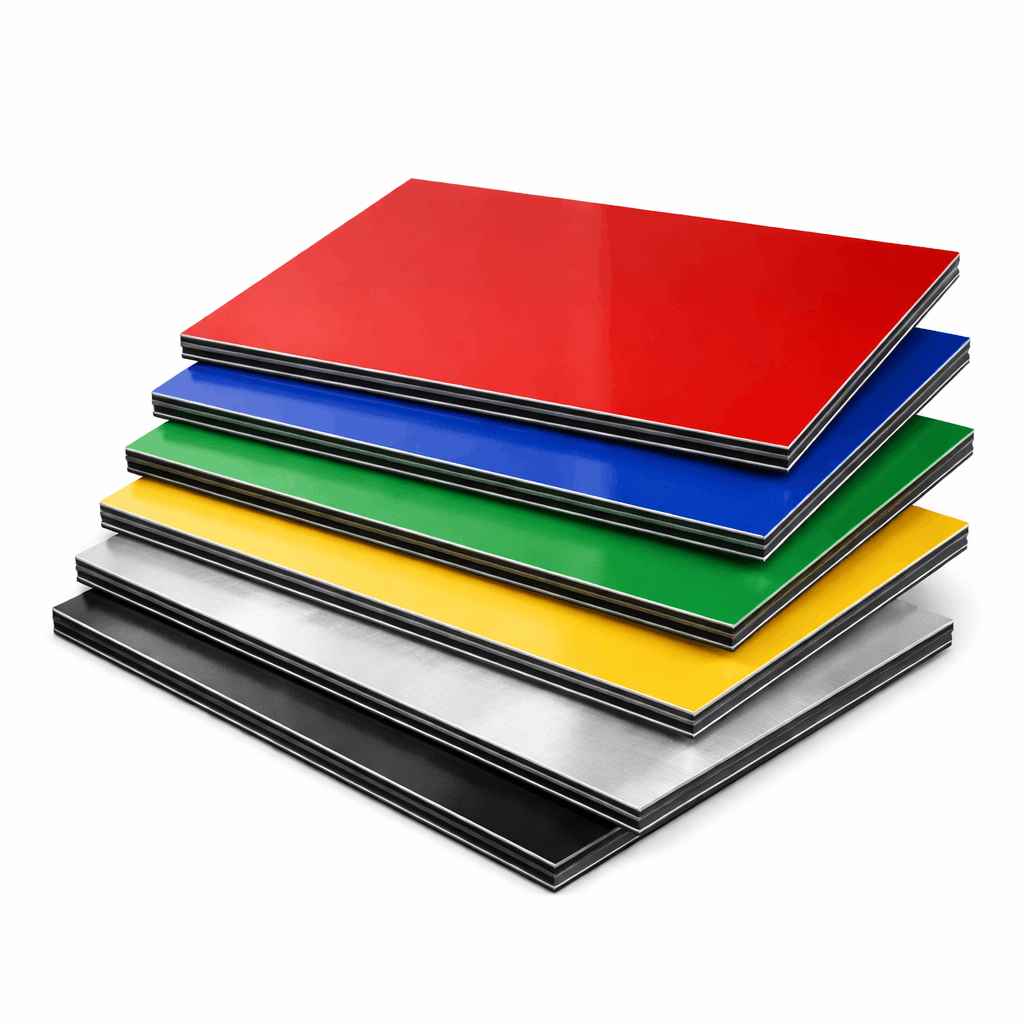

Aluminum composite panels are manufactured using two aluminum sheets bonded to a high-quality core, ensuring excellent rigidity, flatness, and weather resistance. Key features include corrosion resistance, UV stability, thermal insulation, sound dampening, and easy fabrication. ACPs are available in multiple commercial grades such as PE (polyethylene) for interior use, FR (fire-retardant) for regulated buildings, and A2 mineral core for high fire safety requirements. Standard panel sizes include 1220×2440 mm, 1250×3200 mm, and custom dimensions, with thickness options typically ranging from 3 mm to 6 mm and aluminum skin thicknesses from 0.2 mm to 0.5 mm. A wide selection of colors and finishes is available, including solid, metallic, mirror, brushed, wood grain, stone texture, and custom RAL or Pantone shades. Fire performance classes include B1, A2, and non-combustible options, compliant with international fire safety standards. Panels offer excellent bending performance, CNC compatibility, and ease of installation with cassette, tray, or flat mounting systems.

Aluminum composite panels are widely used in building façades, curtain walls, interior wall cladding, ceilings, columns, shop fronts, signage, billboards, and modular structures. They are suitable for commercial buildings, airports, malls, hospitals, hotels, industrial facilities, and residential projects. Technical specifications such as thermal expansion, wind load resistance, coating type (PVDF or polyester), and service temperature are carefully controlled for long-term durability. With low maintenance requirements, recyclability, and consistent quality, aluminum composite panels provide a reliable, modern solution for architects, contractors, and developers seeking performance and design excellence.
