Euro Screw

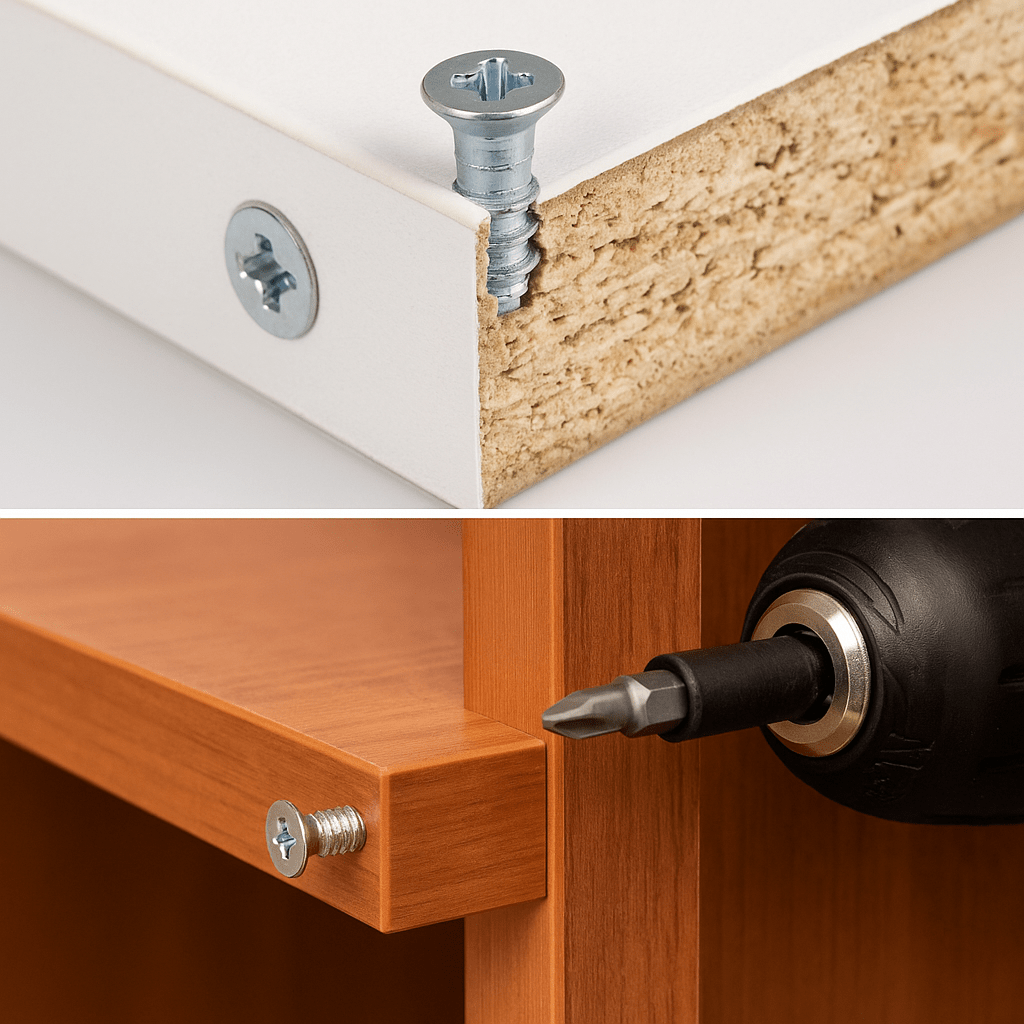

Euro Screw, also known as Hinge and Rail Screws, are compact and sturdy with a flat-mounted head, perfect for mounting sliding rails, hinges, and other hardware.

Euro screws are specifically designed for use with European-style cabinet hinges and drawer slides. They have a flat head, a partial thread, and a special 5mm diameter shank, which allows for easy adjustment and secure attachment of hinges and slides to cabinet panels.

Key Features

Flat or slightly rounded head with a Pozidriv or hex drive
Large, deep threads for strong grip in particle board
Short, thick shank (compared to wood screws)
Blunt tip – not self-drilling (requires pre-drilled hole)
Precise fit in pre-bored holes (usually 5 mm diameter holes)

Common Sizes

Size		Typical Use
5.0 × 40 mm		Standard for connecting panels (16–18 mm thick)
5.0 × 50 mm		For thicker panels or stronger joints
7.0 × 40 mm		Heavy-duty applications
7.0 × 50 mm		Large furniture or load-bearing joints

Head Diameter: 7–10 mm
Drive Type: Pozi #2, Allen (Hex 4 mm), or Torx (T20)
Material: Zinc-plated steel or nickel-plated for corrosion resistance

IF YOU ARE WILLING TO BUY BOLTS & SCREWS FROM IRANIAN SUPPLIERS, PLEASE SCROLL DOWN AND SUBMIT YOUR REQUEST.
